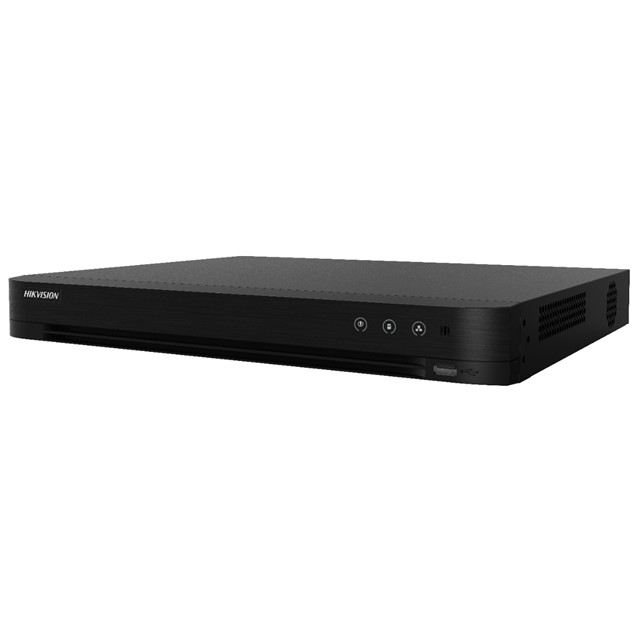

Hikvision 16-ch 5 MP 1U H.265 AcuSense DVR (iDS-7216HUHI-M2/S)

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

  it can classify human and vehicle, and extremely reduce false alarms caused by objects

  like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle Analysis: Up to 4-ch

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  Main stream:

  8 MP@8 fps/5 MP@12 fps/3K@12 fps/4MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 10 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input

  8-ch (up to 24-ch)

  Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output

  1-ch, 4K (3840 × 2160)/30Hz,

  2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

  HDMI/VGA simultaneous output

• CVBS Input: PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback16-ch
• HDTVI Input

  8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4

  MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,

  1080p@30 fps, 1080p@25 fps, 720p@60 fps,

  720p@50 fps, 720p@30 fps, 720p@25 fps

• AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Audio Input

  1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)

  16-ch via coaxial cable

• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Network

• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection: 128
• Network Interface

  1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

• Wi-Fi: Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity: Up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0

  Rear panel: 1 × USB 3.0

• Alarm In/Out: N/A (optional to support)
