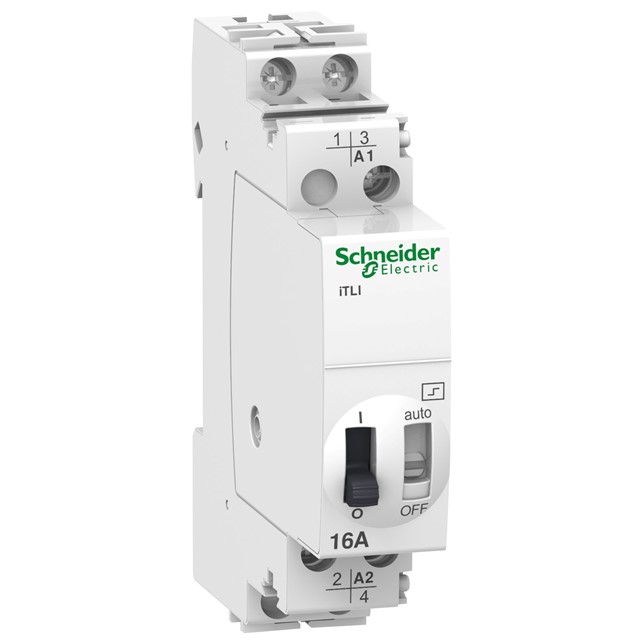

Schneider impulse relay iTLI – 2P – 1NO+1NC – 16A – coil 110 VDC – 230…240 VAC 50/60Hz (A9C30815)
Rp523.809
Deskripsi
Spesifikasi
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iTL |
| Product or component type | Impulse relay |
| device short name | ITLi |
| Device application | Changeover relay |
| Poles | 2P |
| Pole contact composition | 1 NO + 1 NC |
| [In] rated current | 16 A |
| Network type | AC |
| [Uc] control circuit voltage | 230…240 V AC 50/60 Hz 110 V DC |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Control type | Coil deconnection Remote and manual control |
| Control signal type | Impulse |
| Switching frequency | 5 switching operations/minute 100 switching operations/day |
| Impulse duration | 50 ms…1 s |
| Remote control type | Illuminated push-button 3 mA |
| Local signalling | ON/OFF indication |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Electrical durability | AC-21: 200000 cycles AC-22: 100000 cycles |
| Connections – terminals | Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule |
| Wire stripping length | 11 mm |
| Tightening torque | 1 N.m |
| Range compatibility | Acti 9 iATEt Acti 9 iATL4 Acti 9 iATLc Acti 9 iATLc+s Acti 9 iATLm Acti 9 iATLs Acti 9 iATLz Acti 9 iETL iTL 16 Acti 9 iATLc+c Acti 9 iATL24 |
| standards | EN 669-1 EN 669-2-2 |
|---|---|
| Product certifications | CCC GOST |
| Quality labels | CEBEC NF IMQ KEMA VDE |
| Noise level | 60 dB |
| IP degree of protection | IP20 conforming to IEC 60529 (on opening) IP40 conforming to IEC 60529 (in enclosure) |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 1.700 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 112.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 9.100 cm |
| Package 2 Length | 23.000 cm |
| Package 2 Weight | 1.392 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 16.671 kg |
